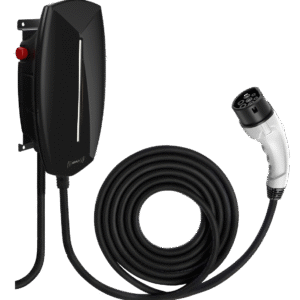

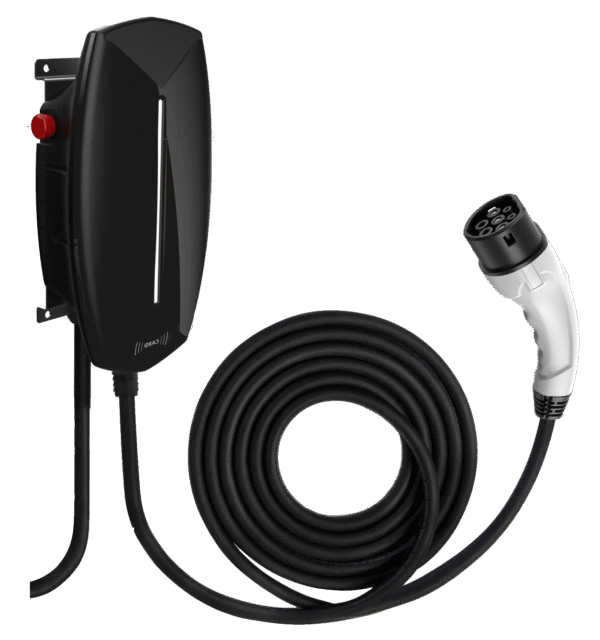

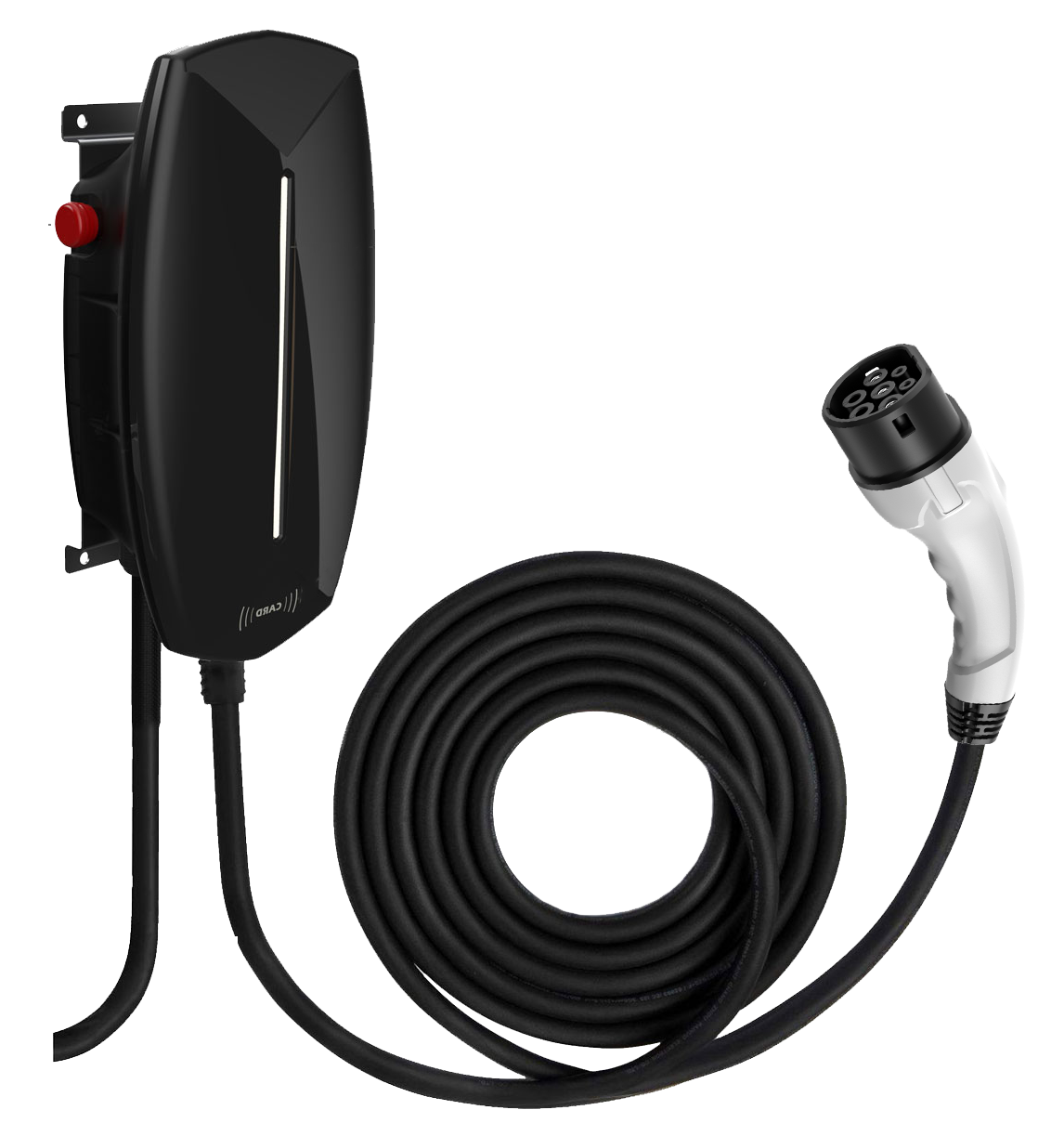

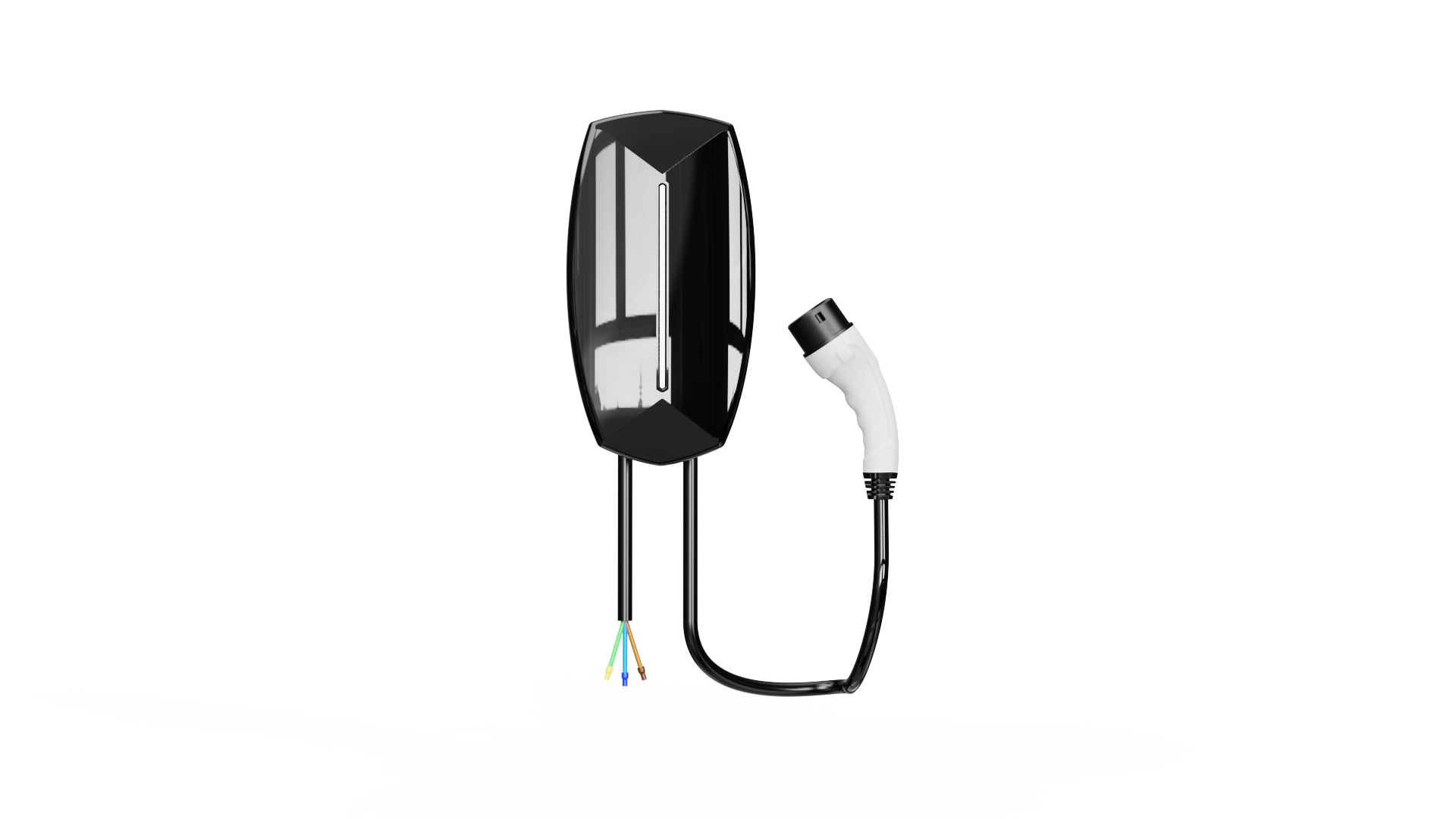

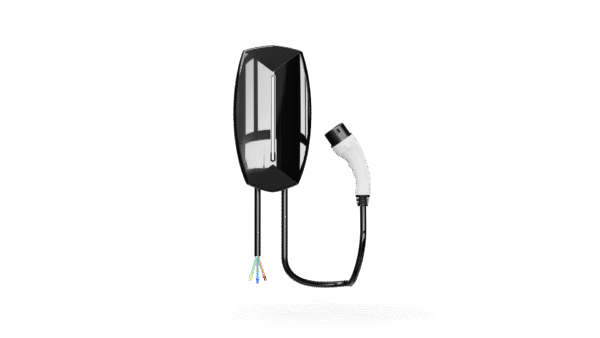

Kentures ThunderBolt 22kW: The Ultimate High-Speed Wall Charging Station
The Kentures ThunderBolt 22kW is a professional-grade AC charging solution engineered for rapid energy delivery. Designed for both high-end residential installations and commercial fleet environments, this three-phase charging station utilizes the universal Type 2 connector to provide up to 22kW of power, significantly reducing downtime for compatible electric vehicles.
Three-Phase Power for Rapid Level 2 Charging
By leveraging a 400V three-phase supply, the ThunderBolt delivers a maximum output of 32A per phase. For vehicles capable of accepting a 22kW AC charge (such as the Renault Zoe or high-spec Tesla Models), this station can provide a full charge in a fraction of the time compared to standard 7kW units. Its intelligent power management ensures stable delivery even during peak usage.
Smart Connectivity & OCPP Integration
The ThunderBolt is more than just a power source; it is a smart energy node. With built-in Wi-Fi and Ethernet connectivity, the station supports the OCPP 1.6/2.0 protocol, allowing for seamless integration with third-party billing platforms and management software. Users can manage charging sessions, schedule off-peak starts, and monitor energy consumption via a dedicated mobile app.
Industrial-Grade Durability: IP65 Rated
Safety and longevity are at the core of the ThunderBolt design. The station features a robust, weather-resistant enclosure with an IP65 rating, ensuring total protection against dust and high-pressure water jets. Whether installed in an underground car park or an exposed outdoor commercial lot, the ThunderBolt operates reliably in temperatures ranging from -30°C to +50°C.
Technical Specifications & Performance Suite
-
Max Output: 22 kW (Three-Phase, 400V AC).
-
Charging Interface: Type 2 Socket (Compatible with all Type 2 EVs).
-
Protection Suite: Comprehensive shielding against overcurrent, overvoltage, earth faults, and short circuits.
-
Load Balancing: Smart load management features to protect your building’s electrical infrastructure.
-
Physical Footprint: Compact 420mm x 280mm x 150mm wall-mounted design.
-
Certification: Fully CE, RoHS, and IEC compliant for international safety standards.
Why Choose the Kentures ThunderBolt Series?
Kentures provides future-ready infrastructure for the evolving EV landscape. The ThunderBolt 22kW is designed for scalability and ease of maintenance, making it the preferred choice for business owners, property developers, and EV enthusiasts. Each unit is backed by an industry-leading 3-year manufacturer warranty and expert technical support based in Essex, UK.
